O2 Cylinder Refilling Systems

Oxygen Products

AirSep Oxygen Cylinder Refilling Systems enable customers to fill oxygen cylinders for existing needs or to supply others.

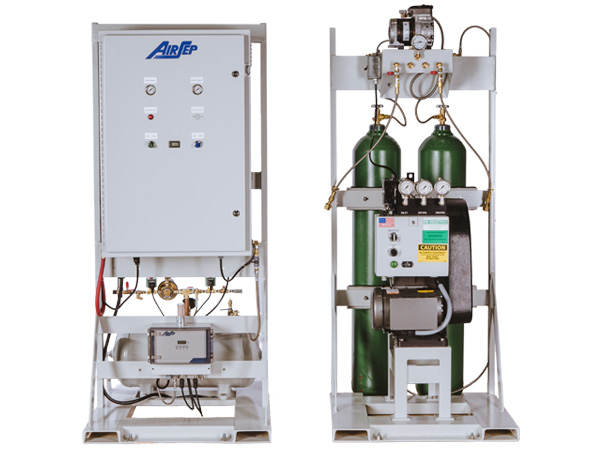

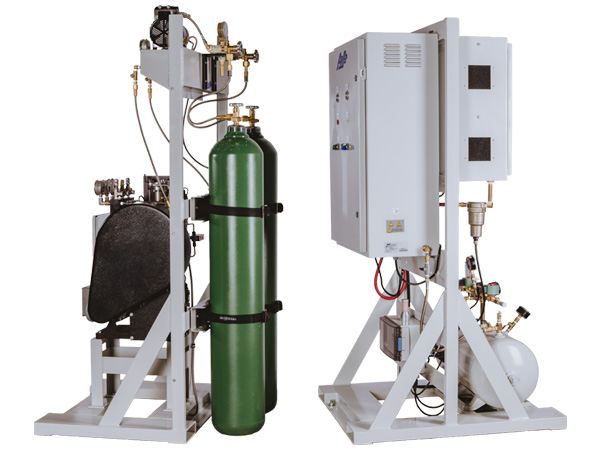

AirSep manufacturers a complete line of turnkey oxygen cylinder refilling plants — with capacities from 8-100s of cylinders per day. Complete plants include a feed air compressor, feed air dryer, oxygen generator, oxygen compressor, and a cylinder filling rack. The oxygen compressor delivers oxygen at up to 2,200 psig (15,169 kPa or 151.6 barg) to a high pressure manifold capable of filling up to 10 cylinders at a time. These cylinder refilling plants operate automatically and generate nominal 93% oxygen. For special applications, an optional high purity module can be added to the plant, to increase oxygen concentration to 99% ±.5%.

AirSep Oxygen Cylinder Refilling Packaged Systems

Models Capacity – Cylinders/day (Standard K Cylinders (244 SCF))
AS-D-CR 8
AS-G-CR 30
AS-J-CR 60
AS-K-CR 88.5
AS-L-CR 127.8

Models larger than the AS-L-CR are built to order.

AirSep Oxygen High Purity Packaged Systems

Typical Models Cylinder Capacity (Standard ‘K’: 244 SCF)
AS-G250-HPCR 25
AS-J460-HPCR 46
AS-J600-HPCR 60
AS-L1060-HPCR 106
