AirSep Self-Contained Oxygen Generators

Self-Contained O2 Generators

Oxygen Products

For unique applications, AirSep offers a range of completely self-contained oxygen generators equipped with air compressors.

With the exception of the Centrox, these generators require no special installation. Simply connect the oxygen outlet to your application or oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen flow rate.

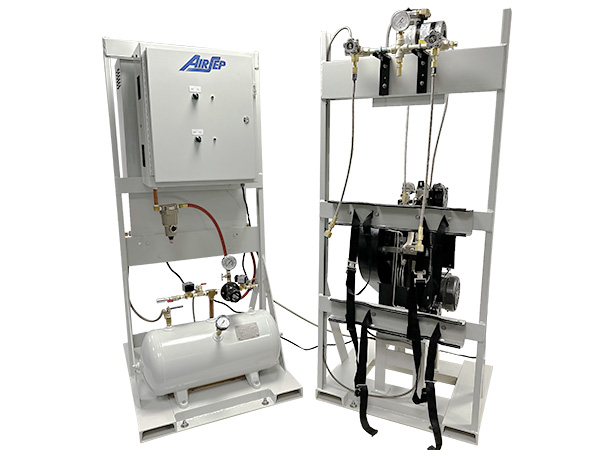

The Centrox and Reliant are great for use in hospitals, medical clinics, and veterinary medicine. They, along with the Onyx Series and Topaz Series, also serve commercial applications in manufacturing and environmental processes.

From oxygen bars, waste/water treatment, jewelry repair/manufacturing, fish farming, artistic glass work, and supplying feed gas to ozone generators to purify water, AirSep covers it all.

Typical Applications

Medical
  • Medical Oxygen Supply
  • Veterinary Medicine
Manufacturing
  • Cutting / Brazing / Soldering
  • Thermal / Chemical Oxidation
  • Glass Work / Blowing
Environmental
  • Ozone (Generator) Feed Gas
  • Environmental Remediation
  • Waste / Water Treatment
Additional
  • Fish Farming
Features Include
  • Self-contained (includes air compressors)
  • Low operating cost
  • Advanced Engineering
  • Time-proven reliability
Specifications Include
Model Product Flow Product Pressure
SCFH* Nm3/Hr* LPM* psig kPa barg
Onyx 10 0.3 5 9 62 0.62
Onyx Ultra 21 0.55 10 20 138 1.37
Topaz 12 0.31 6 9 62 0.62
Topaz Ultra 21 0.55 10 20 138 1.37
Reliant 17 0.44 8 50 345 3.5
Centrox 32 0.84 15 50 345 3.5

* SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F.
* Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C.
* LPM (Liters per minute) gas measured at 1 atmosphere and 21°C.

Literature Includes
